Setup TCP/IP Routing

I am using the following network to explain the setup requirements of Routing (assuming that you have knowledge of TCP/IP setup and on setting up systems with MULTIPLE network adapters):

Some of these systems are/can beWindows95/98, some are/MUST be NT4.

System #1:
This system
(can be Windows95/98 or NT4) has only 1 Network card and is configured (example is using NT4) :

This system knows about all systems on its own network cable (192.168.1.x) and will use the Gateway/Router (which is System#2) for communications with any other system.

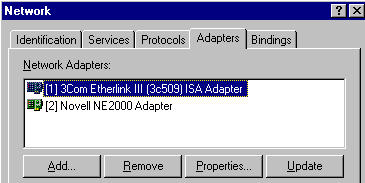

This is a Windows NT4 system configure with 2 Network cards:

The first Network card communicates with System#1:

the second Network card communicates with System#3:

In addition, NT4 TCP/IP protocol must be configured to "route":

System#2 can communicate directly with System#1 and System#3, but NOT with System#4
(because it does NOT know about a network 192.168.3.x and how to reach it).

We need to help System#2 by giving some information, on how to get to System#4, by either defining System#3 as a Gateway or by manually manipulating the TCP/IP routing tables using the command-line utility ROUTE.
ROUTE.EXE is part of Windows95 and Windows NT4 and is documented in the Resource Kit:

In our example, we would enter on system#2:
ROUTE ADD 192.168.3.
this informs System#2, that all communications for TCP/IP addresses 192.168.3.
x (the '0' in the route-command translates to 'each system with an address 192.168.3.x', which in our example includes System#4) has to go via ( which is System#3).

The rest of the Network is configured similar to Systems#1 and #2.

If you like more info on the ROUTE-command, please look at the following article in the Microsoft Knowledge Base:

Test your setup using PING:
Example: from System#1

System#1 can communicate with System#2 and #3 in this test.

Example: from System#3

System#3 can communicate with System #2, but NOT with System#1.
In such cases, check on ALL system the IP-addresses, Gateway-addresses and that IP-forwarding is enabled.

And don't forget: IT MUST WORK IN BOTH DIRECTIONS, otherwise the system receiving the PING-test-signal does NOT know on which route to send the echo back !

Browsing a system, which is accessed via a Router

Workgroups have limitations, and one of them is:
Systems on different network cables cannot be in the same workgroup !
To access a system via a router, you need to use the "Find"-command in the Windows Start-bar and search for a Computer:

To avoid to get an Error-message:

you need to create/update the file "
On Windows95, a sample-version called LMHOSTS.SAM is installed with TCP/IP in your Windows-directory. Rename/copy it to LMHOSTS and enter the IP-address with the computername, then you can "
find" this system:

Now the big question: Can I use Windows95 as a Router ?

Officially: NO.
Microsoft has reserved the functionality to route for Windows NT.

Unofficially: YES,
but with limits
I have not yet tested this myself, but have seen in the Newsgroups several postings, that it is possible

Want windows 95 to act as a router!
using Windows95 as a TCP/IP Router between ONE Ethernet-cable and a Dialup Networking connection with a STATIC IP-address :

Apparently, you need the
Dialup-Networking Upgrade 1.2, which includes a TCP/IP upgrade, and then need to define in your Windows95 Registry:
new value (as StringValue):

I repeat: I have NOT tested this myself, and can therefor NOT ANSWER any question on this topic.
For any questions on this subject, please see:
